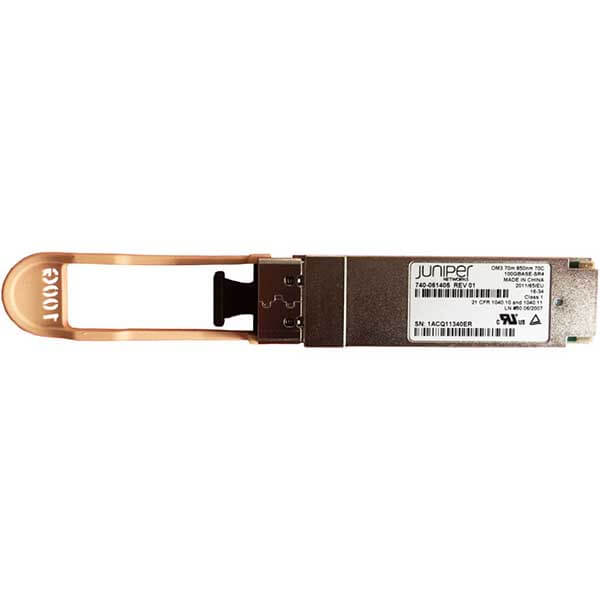

Juniper 740-061405 JNP-QSFP-100G-SR4 100GE QSFP28 SR4 100m MMF OM3 70m 850nm Transceiver Module
Original price was: £165.00.£120.00Current price is: £120.00.
- Wavelength:- 850nm
- Max Cable Distance:- 70m@OM3/100m@OM4
- Commercial Temperature Range:- 0 to 70°C
- Typical Power Consumption:- ≤2.5W
- Receiver Overload:- 2.4dBm
You may also like
-
HPE P04539-B21 6.4TB SSD 2.5 SAS 12G MU 9G 10G
Original price was: £2,630.00.£2,455.00Current price is: £2,455.00. -

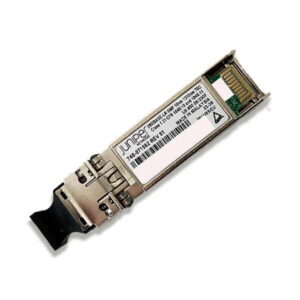

Juniper SFP-25G-LR-C QFX-SFP-25G-LR 740-071562 SFP28 25G LR 1310nm Transceiver Module
Original price was: £780.00.£660.00Current price is: £660.00. -
HPE Aruba X371100V-240V AC SP 12V DC 250 Watt
Original price was: £860.00.£810.00Current price is: £810.00. -
HP P39381-001 32GB CL22 Reg DDR4-3200MHz
Original price was: £570.00.£545.00Current price is: £545.00. -
Brocade XBR-000285 4x32G 128G QSFP28 2km ICL Transceiver Module 57-1000480-01
Original price was: £395.00.£340.00Current price is: £340.00. -
Juniper Cable JNP-100G-AOC-20M Active Optical Cable
Original price was: £820.00.£710.00Current price is: £710.00.
Specifications:
- Brand Name:- Juniper
- Part Number:- JNP-QSFP-100G-SR4
- Product Category:- Transceivers
- Transceiver Type:- QSFP28
- Max Data Rate:- 103.125Gbps
Parameters:
- Wavelength:- 850nm
- Max Cable Distance:- 70m@OM3/100m@OM4
- Commercial Temperature Range:- 0 to 70°C
- Typical Power Consumption:- ≤2.5W
- Receiver Overload:- 2.4dBm
Brief Details:
- Connector:- MTP/MPO-12
- Media:- MMF
- Transmitter Type:- VCSEL 850nm
- Receiver Type:- PIN
- TX Power:- -8.4~2.4dBm
- Minimum Receiver Power:- -10.3dBm
- Power budget:- 1.9dB
- Extinction Ratio:- ＞3dB
- DDM/DOM:- Supported
- CDR (Clock and Data Recovery):- TX & RX Built-in CDR
- Inbuilt FEC:- No
- Protocols:- IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI
Dimensions:
- Production Dimensions (LxWxH):- 7.24 x 1.84 x 1.35 Cm/ 72.4 x 18.4 x 13.5 mm
- Weight: 0.1 kg/ 0.22 Lbs
- Product Shipping Dimensions(LxWxH): 4″x4″x2″
- If you need a Juniper JNP-QSFP-100G-LR4, We Have
